CLX 450 TC
Universal turning new defined
Max. workpiece diameter
400 mm
Max. workpiece length
1,100 mm
Max. bar capacity diameter
65 mm
Max. X-axis stroke
750 mm
Max. Y-axis stroke
200 mm
Max. Z-axis stroke
1,100 mm
Control & software alternatives
SIEMENS
Highlights

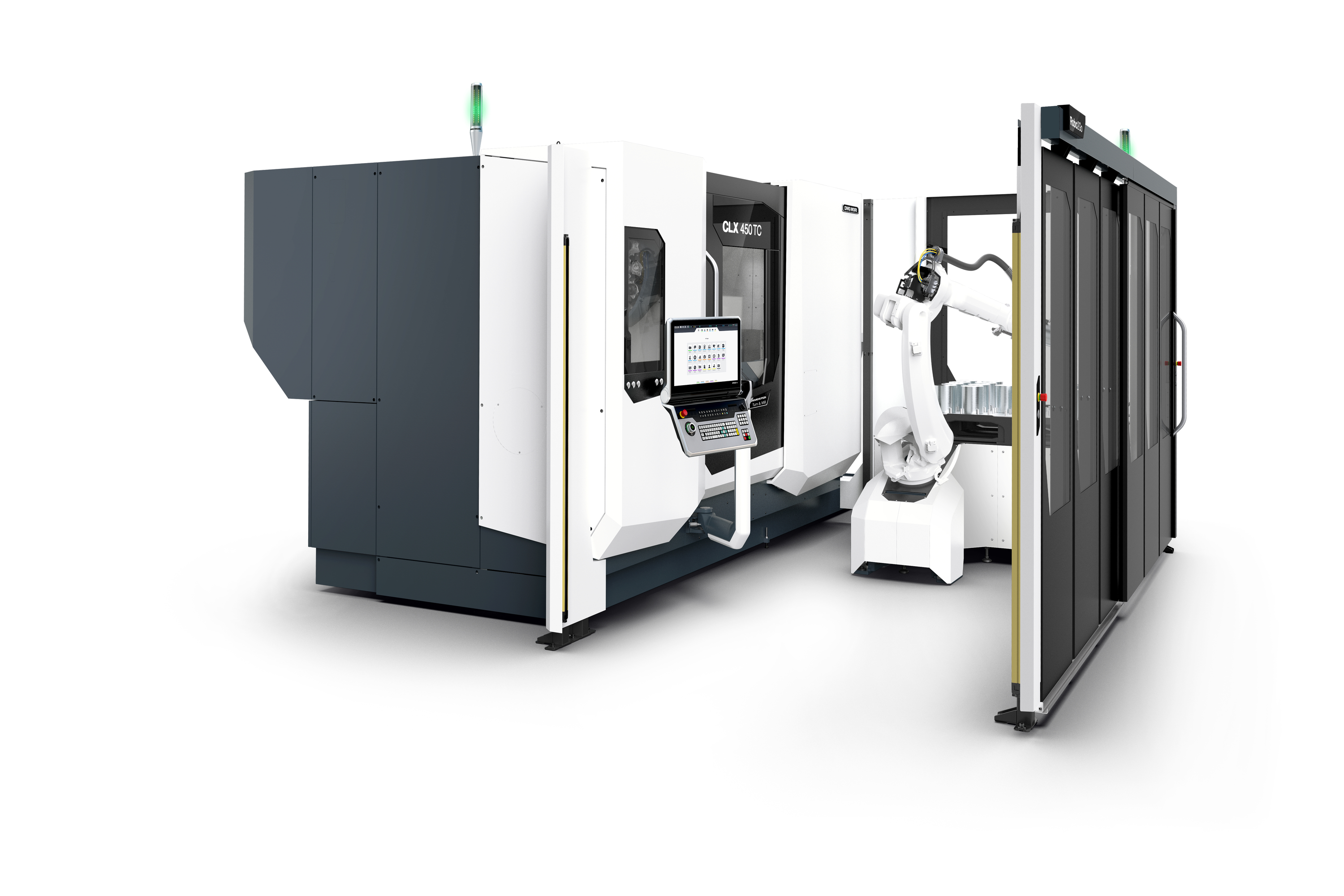

CLX 450 TC universal machine - DMG MORI
The B-axis factor - added value compared to any turret lathe
- Shortest set-up times thanks to automatic tool change with 30 or optionally 60 tools
- Eliminates the need for angular tools: B-axis with + -120 ° swivel angle and 0.001 ° resolution
- Minimized downtime due to multitools and sister tools
6-sided complete machining by main- and optional counter spindle
- Highest positioning accuracy and performance thanks to integrated spindle drives up to 5,000 rpm and 345 Nm as well as integrated C-axis (0.001 °)
- No driven tool holder necessary, thanks to the compactMASTER turn-mill spindle with 12,000 rpm and 90 Nm
- Optimally matched work space for workpieces up to Ø400mm x 1,100 mm
Perfect automation capability
- Multijob: No tool setup when producing different workpieces
- Sister tools reduce machine downtime and ensure more process reliability
- Robo2Go up to 35kg payload or bar loader with pick-up device
Lines and packages - secure your special prices
Use our pre-specified equipment lines and option packages
- BASIC - The basic version contains basic equipment with which you can get started right away
- COMPLETE easy - thanks to counter spindle and important options, it is the perfect entry to complete machining.
- COMPLETE plus - more tools, more technology, more options for maximum flexibility
Application Examples
Automation
Standard automation and customised solutions in the VERTICO design
Automation is a key element of digital production. Every DMG MORI machine can be upgraded with standard automation or with a customised automation solution for flexible manufacturing systems:
Robo2Go Turning
Flexible workpiece handling for small to medium batch sizes
- One app for uniform control of all Robo2Go variants, setting up a new workpiece < 5 minutes
- Robo2Go Turning, robot payload 12, 25 or 35 kg
- Rapid changeover from chuck to shaft parts
- Robo2Go Vision, robot payload 35 kg
- Robust 3D camera recognition, ideal for multi-job function
Highlights
One app for uniform control of all Robo2Go variants.
- Integrated in the machine control operation via CELOS APP: No need to change your NC programs!
- Intuitive usability thanks to dialog-guided software
- Creation of the process through predefined program modules via drag & drop: No robot programming knowledge necessary
- Setting up a new workpiece < 5 minutes
Robo2Go Turning
- Rapid changeover from chuck to shaft part storage
- Handling of shafts ø 20 – 170 mm and chuck parts ø 20 – 175 mm
- Three versions for all requirements: Robot payload 12 / 25 / 35 kg
- Stacking magazine
Robo2Go Drawer Storage
The storage expantion for your Robo2Go Turning
- 300 % higher capacity compared to standard
- Main time-parallel setup of the workpiece storage
- Multijob per drawer and within a drawer possible in the standard system
- Job management of all jobs via the Robo2Go Jobs app
Robo2Go Vision
- Robust 3D camera recognition, ideal for multijob function
- Infeed and outfeed of raw and finished parts by pallet
- Cylindrical chuck parts of ø 25 – 175 mm
Details
Robo2Go Turning – Load capacity 12, 25 and 35 kg
Standard automation but flexible to suit your workpieces
MATRIS
Flexible modular robot system for ≥ 1 machine
- Modular concept with standardized peripheral devices, e. g. washing, measuring or marking
- 80 % shorter setup time due to modular and standardized peripherals and robot programs
- Flexible adaptation to system changes including after installation
- Simple and easy operation via the MATRIS control system without programming
Highlights
Highlights - Workpiece Handling
- Handling of workpieces up to ø 200 × 200 mm, 1 × 20 kg or 2 × 10 kg
- Stacking magazine:
- 14, 20 and 26 pallets: ø 150 × 120 mm, max. 35 kg per pallet
- 10 and 20 pallets: ø 200 × 200 mm, max. 75 kg per pallet
- Loading of oversized tooling in case of vertical machining center
- Available for 13 series, e. g. NLX, NTX, NHX, DMU, NMV, eVo, etc.
Highlights - Pallet Handling
- Ideal for the flexible production of 50 to 200 workpieces / day
- Space-saving pallet handling for up to 40 pallets
- 400 × 400 mm pallet size
- 150 kg transfer weight (workpiece and pallet)
- Integration of secondary processes such as deburring or marking possible
- Available for the CMX 50 U, CMX 70 U, DMU 50, DMU 65 monoBLOCK, CMX 600 V, CMX 800 V, CMX 1100 V
AMR 2000
Holistic automation on the shop floor
- Collaborative automation solution with free layout design
- Omnidirectional movement for minimal space requirements (turning radius 0m)
- Basis for additional tasks, e.g. B. tool handling, chip disposal, etc.
- Material transport from Euro pallets 1,200 x 800 mm
- Maximum transport weight of up to 2,000 kg
- Security based on Sick and Siemens technology
Highlights
AMR 2000 Material
- Autonomous transport of material pallets
- Load capacity up to 2000 kg
- Compact and manoeuvrable
- Integration into existing processes
AMR 2000 chips
- Autonomous transport of chip trolleys
- Automatic pick-up order from the DMGMORI master computer
- Integration into existing material processes
- Extension of machine tool autonomy over the night or weekend
- Fleet ready
AMR 2000 tool handling
- Tool identification in the standard
- Quick installation of the automation system
- Reliable technology with proven components
- Integration into existing production possible
- Max. tool dimensions ø 280 / 400 mm
- Max. tool weight 30 kg
- Transport weight 720 kg (24× 30 kg)
- Maximum number of tools: 24 pcs
Control & Software
MPC 2.0 – Machine Protection Control
- Vibration monitoring in the process
- Rapid shutdown in case of a crash
- Manual retraction even in swiveled machining plane
- NEW: Torque monitoring
- New: Recommended with Protection Package for CTX TC machines
Highlights
Customer Benefits
MPC Graph: current and learned process values. / MPC Diagnostics: stock condition, number of impact and crash.
- Avoiding tool breakage
- Increase in machine availability
- Damage reduction
gearHOBBING
- Programming of the gearing parameters via dialog input
- For spur gear, helical gear and worm gear
- Gear cutters and disk cutters can be used
- Maximized tool life by shifting of the cutter
- Achievable quality ≤ DIN 7
Highlights
Customer benefits
- Gear profile modifications easy to handle
- Use of regrinded tools
- Error prevention by monitoring (e. g. wrong axis cross angle, or wrong turning speed, or turning direction)
Left : Dialogue-supported input of all necesary gearing data. / Right : Input of the gearing paramters by single tooth or single groove milling.
Control of program status
- In combination with the Gildemeister structure programming, A safe and fast reboot of the machining program after an interruption
- Easy program operation especially with multiple spindles or tool magazine
- Displays the process status of the workpiece
Highlights
Customer Benefits
- Display of the detailed status on the controller
- Enter remarks automatically by the GILDEMEISTER structure programming.
- Safe re-entry into the program by the press of a button instead of searching for a specific block.
GILDEMEISTER Structural Program
- Structured approach with more than 20 standard programs and more than 200 processing variants incl. automation (bar processing, robot / portal loading, ...)
- Display of the program status with additional markers (EPS) for the sub-programs.
Left : HMI with markers status. / Right : Clear program structure.
Excentric turning and milling
- Superposition of the turning movement by additional X- and Y-traverses
- Applicable for turning and milling
Highlights
Customer Benefits
- Eccentric geometries easy to manufacture
- Exact axis coupling and synchronization in the background
Left : Enter the parameters for the position of the external workpiece area. / Right : Graphical representation of the position within the workpiece.
Easy Tool Monitor 2.0
- Prevention of damage due to tool breakage or tool overload
- Sensorless with automated learning of load limits
- For turning, milling and drilling (up to 3 mm diameter)
- NEW: User interface on CELOS SideScreen
- NEW: Powerful algorithm for efficient monitoring after the first workpiece
Highlights
Customer Benefits
- Protection Package: Perfect supplement to MPC Lathes. Price advantage (approx. 40%)
- Save the monitoring limits for each tool and every cutting edge in the program
Left : LIVE status display in CELOS Sidescreen; current, set process values. / Right : Easy operation of the monitoring parameters in the tool table.
Interpolation turning 2.0 – turning recessing cycle
- With interpolation turning, the tool cutter follows a circular movement, where the cutter is always oriented towards the center Of the circle.
- Possible for external and internal machining
- Synchronization and tool path controlled by the cycle
- NEW: in version 2.0 complex turning contours are possible (currently only available on the DMU 50, other machine types will follow)
Highlights
Customer benefits
- Easy manufacturing of sealing surfaces where milling operation might not be possible.
- Complete component processing in one clamping possible
- Reduced investment costs for tools
gearBROACHING
- Broaching of internal and external splines with dialogue guided programming
- One-Tooth up to 4-theeth cutting tools with clear tool definition for easy setup.
- Compensation parameters for tool holder deviation in X-direction
Highlights
Customer Benefits
- Fast process setup with safer programming
- High flexibility while process adaption and corrections
- Internal and external gears up to module 4*
* on CTX beta TC up to Module 2 I on CTX gamma TC up to Module 4 I depending on workpiece and cutting tool dimensions
Left: Parameterized clear definition of cutting tools / Right: Compensation for tool holder deviation in X-direction
Multi Threading 2.0
- NEW: On-Point Threading - Position oriented thread production
- Free definition of contours, pitches and gears possible
- Creation of large transmission threads, which can not be manufactured by simple thread chasing
Highlights
Customer Benefits
- Trapezoidal, buttress and knuckle thread easily programmable at the machine
- Screw conveyor with any profile geometry
- Ball screw nut with cross holes simple to realize
Left : Input of the parameter for thread length, position pf the thread and the distance of the retract movement. / Right : Parameters for thread shaping, e.g. profie height, pitch diameter, etc.
Multi threading 2.0 Pro
Highlights
- Producing profiles with undercut due to the profile splitting option.
- Applying standard tools and tool holder for left and right sided machining of the flanks
- Surface quality of Ra 0,3 an CrNi-Alloys possible
Counter spindle tip
- Perfect combination of 6-sided complete machining and tailstock function
- Automatically load and unload a tailstock centre into the chuck of the main spindle or counter spindle via the milling spindle and into the mgazine
- Support of long and slender workpieces on the main spindle thanks to the synchronous counter spindle tip
Highlights
Customer Benefits
- Higher component accuracy due to automatic change without opening the door (heat flow constant)
- Position-locking the spindle with the tip leads to increased process safety
Left : Automatic changed centering tip. / Right : Parameter Input Mask: Control Cleaning, changing tip and control coolant
Alternating speed
- Easy to operate through three parameters and without additional sensors
- Avoiding vibrations by means adaptation of the speed
- Application for the main spindle and counter spindle, or for milling machines with FD tables with Direct Drive
Highlights
Customer Benefits
Input of parameters for speed set-point, differential speed and revolution frequency
- No manual intervention by the operator
- Identical repeatability for all components
- Increased process safety for special applications by avoiding vibrations. example, When using long thin drills or for milling parts with critical clamping
FreeTurn
- For shop-floor programming with easier integration in the NC-program.
- Easy tool definition in for the NC-program due to the integrated tool library
- Possibility to define the adjusting angle (kappa) for each cutting edge and each operation to achieve the best machining results
* Simultaneous movement of Kappa must be programmed with CAM
Highlights
Customer Benefits
- Possible saving of different tools and related tool changing time
- For roughing and finishing, profile turning, external cylindrical and face turning operations with optimized cutting force direction
Left: Easy selection of the FreeTurn Tool via integrated library / Right: Easy tool definition for shop-floor programming on the machine
Y-Axis Parting
- Higher stability due to optimal force transmission in thelongitudinal direction of the tool holder
- Generation of tool feed in the Y-direction for parting off components at a push of a button
- Compatible with the standard cycle CYCLE92 (Part off cycle), so that the operator can program as usual (ShopTurn and DIN / ISO)
Highlights
Customer Benefits
- Up to three times higher productivity possible (3x feed) with simultaneously improved chip control
- Reduced noise level and higher surface quality through more tool stability
- Less material loss due to reduction of the parting width
Left : Operator mask for switching on the Y-axis parting cycle on turret and turn-mill machines. / Right : CoroCut® QD for Y-axis parting cutting tool technology developed by Sandvik Coromant.
Runtime Monitor
- Application especially for multi-channel machines for time analysis of the production process and as a basis for the cycle time optimization
- Individual zoom in to view minute details for cycle time optimization
Highlights
Customer Benefits
- Histogram up to three channels
- Provides the basis for cycle time optimization by graphical inputs
- Save / Load the recorded data to compare individual optimized steps
Left : Histogram shows the program runtime of up to three channels directly on the control. / Rights : Recording of primary and auxiliary processing time, program pause and the time waiting for tool changing.
autoCHUCK 2.0
- Automatic optimization of servo drives parameters for Main- and Sub-Spindle
- Reduction of Setup time
- Optimization of machining result
Highlights
Customer Benefits
- Setup Time reduction
- Automatic determination of parameters independent from machine operator experience
- saving the setting in NC-program for more quality assurancet
Left: Simplified usability of measuring and parameter setting procedure / Right: Local saving of parameter in NC-program
Polygon- / Oval-Turning
- Easy handling of non-circular parts
- Intuitive user interface for polygons / oval turning
Highlights
Customer Benefits
- Making the required geometries with possibilities of simple fine-tuning
- Possiblity of fine tuning of the geometric parameters (long / short Semi-axis and bearing angle)
- Machining can be combined with main spindle or counter spindle
Left : Pre-position and support position in X and Z-axis can be directly entered over the surface. / Right : Monitoring of the support position via a defined Position window.
Service & Training
Downloads & Technical Data
Work Area
Max. X-axis stroke
750 mm
Max. Y-axis stroke
200 mm
Max. Z-axis stroke
1,100 mm
Workpiece
Max. workpiece diameter
400 mm
Max. workpiece length
1,100 mm
Max. bar capacity diameter
65 mm
